Debelle Diamond F1: specially designed to solve the problem of groove coating!

2026 06/27

Diamond F1- Specialized in groove parts

In the fields of precision coating such as automobiles, aerospace, and high-end home appliances, the problems of difficult powder coating, fat edges, and uneven film thickness on grooves have long plagued the efficiency of high-end spraying processes.

Debelle has always focused on innovative research and development, leveraging its leading technological advantages to deeply analyze industry pain points and launch the annual innovative masterpiece - Diamond F1.

Specially designed to solve the problem of groove coating, we provide professional, efficient, and reliable personalized solutions with breakthrough technology.

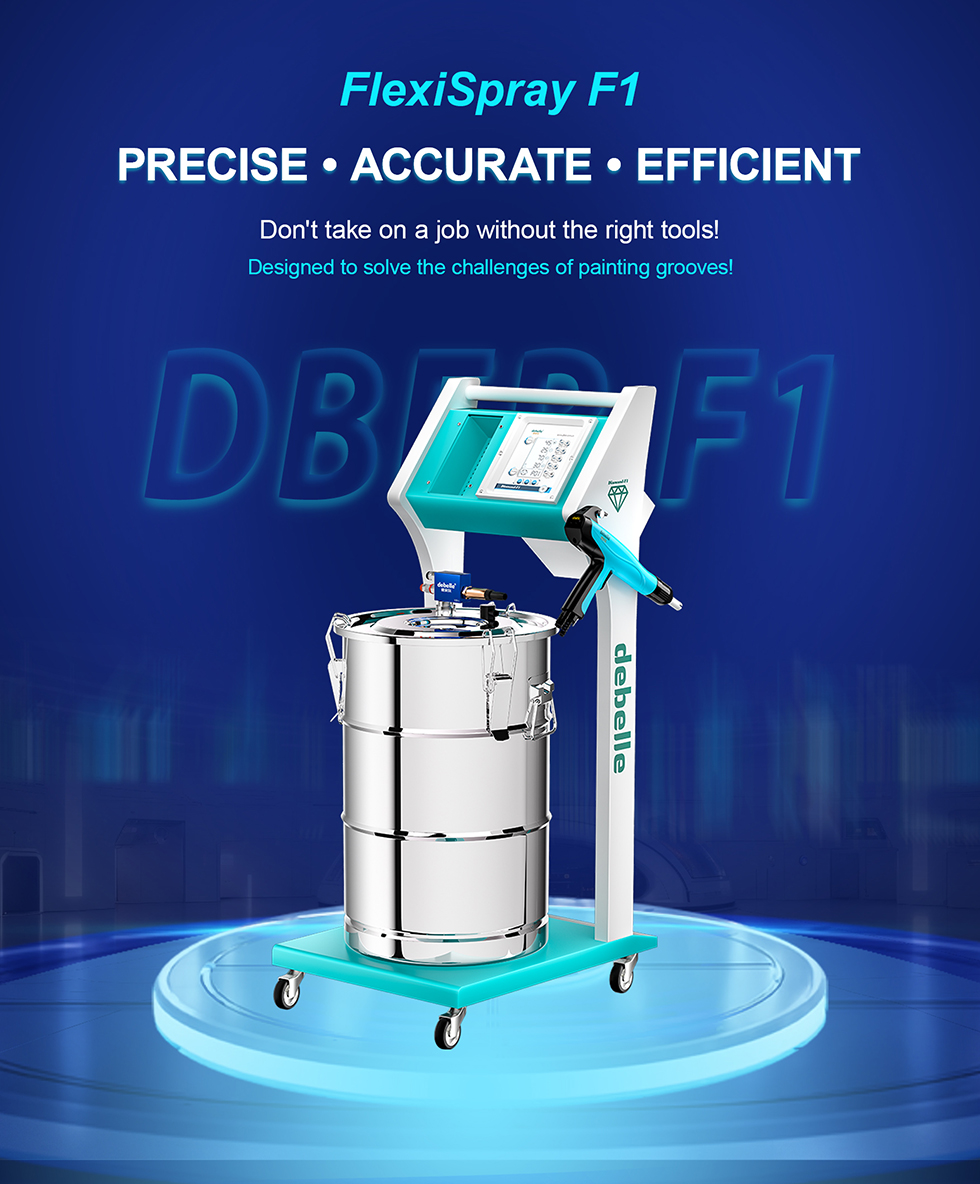

Diamond F1 Pro Manual Powder Coating Machine

Difficulties in groove coating

In the electrostatic powder spraying process, the Faraday cage effect has always been a core challenge that restricts the quality of coatings with complex structures such as grooves and cavities. The power lines are shielded by the surface of the workpiece, making it difficult for powder particles to enter concealed areas, resulting in defects such as missed spraying, thin coatings, and even exposed substrates.

In response to the industry's coating challenges, the Debelle Diamond F1 ° electrostatic powder gun has achieved breakthrough improvements with three leading technologies.

Precision Spray PTC Precision Powder Control Technology

·By using precision digital valves in conjunction with Debelle's secondary pressure stabilizing air circuit, flexible powder dispensing and uniform spraying can be achieved,

Simultaneously ensuring core technologies such as uniform coating thickness.

·50um digital valve "precision powder pump: equipped with intelligent spraying system, one click operation, achieving high-quality spraying.

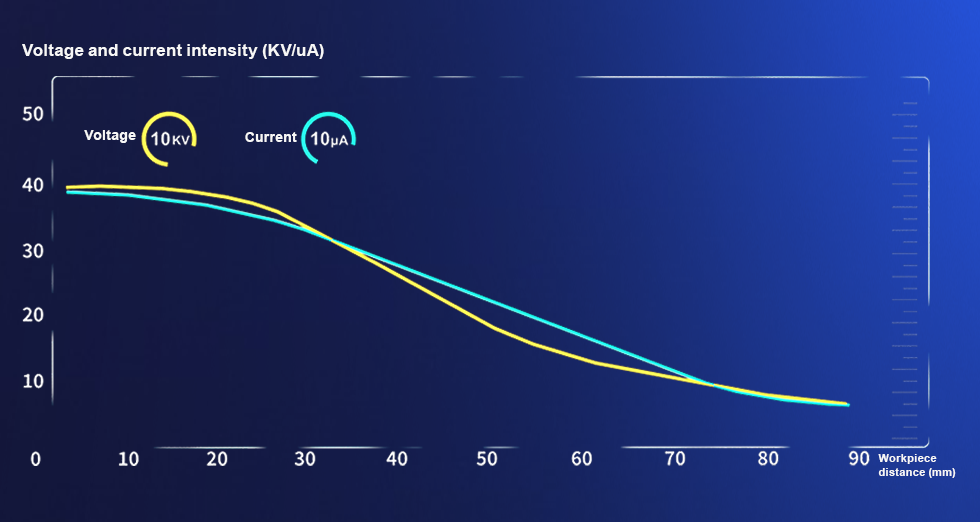

Accurate film thickness - CVT constant voltage technology

·Constant voltage technology:

Based on the distance between the needle and the workpiece, the system detects changes in current in real time, rapidly increases power to stabilize voltage, and reduces current to ensure effective adsorption of powder at distant corners, avoiding the Faraday cage effect caused by high current and repelling powder, thereby ensuring powder loading rate.

• Extreme Efficiency 29kHz High Frequency Charging Technology:

·The high-frequency charging technology independently developed by Debel significantly improves the powder charging ability compared to conventional 16-20kHz.

·Enhance the penetration power of the electric field, allowing the powder to penetrate deep into the groove.

·The powder loading rate has increased by over 80%, significantly reducing powder consumption and saving production costs.

Widely applicable in various fields

Debelle Diamond F1 focuses on new energy storage coating scenarios, using independent original core technology and combined with original powder spraying process to achieve uniform powder coating, significantly improving the adsorption performance of concave corners and irregular structures, accurately controlling the coating thickness of workpieces such as energy storage cabinets and radiators, and fully adapting to the strict coating standards of new energy.

At the same time, it is widely used in industries such as new energy, aluminum profiles, building materials, communication, automobiles, home appliances, roller coating, furniture, containers, fine products, and various hardware sheet metal, providing one-stop solutions to meet the differentiated spraying needs of multiple scenarios.

Customized coating solution

Debelle takes innovative technology as the cornerstone and provides one-stop coating services for the entire chain from independent research and development, production line planning to landing and production. With industry-leading delivery standards, we assist customers in achieving high-quality and efficient production of high-end coating projects.

After 21 years of deep cultivation, Debel drives industrial upgrading through independent research and development.

Adhere to originality, be loyal to quality, and remain consistent.

Choosing Diamond F1 means choosing a comprehensive guarantee of professionalism, quality, and technological leadership. Join hands to create intelligent and efficient new standards in the painting industry.
